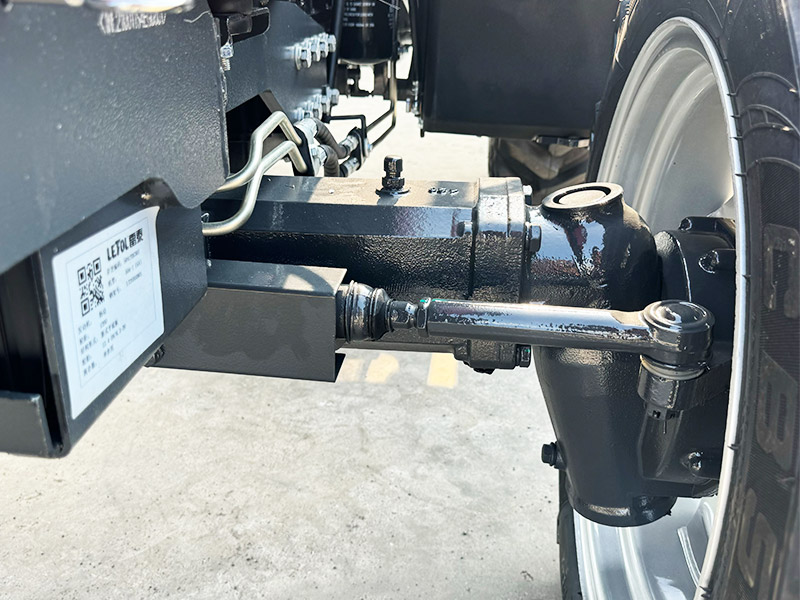

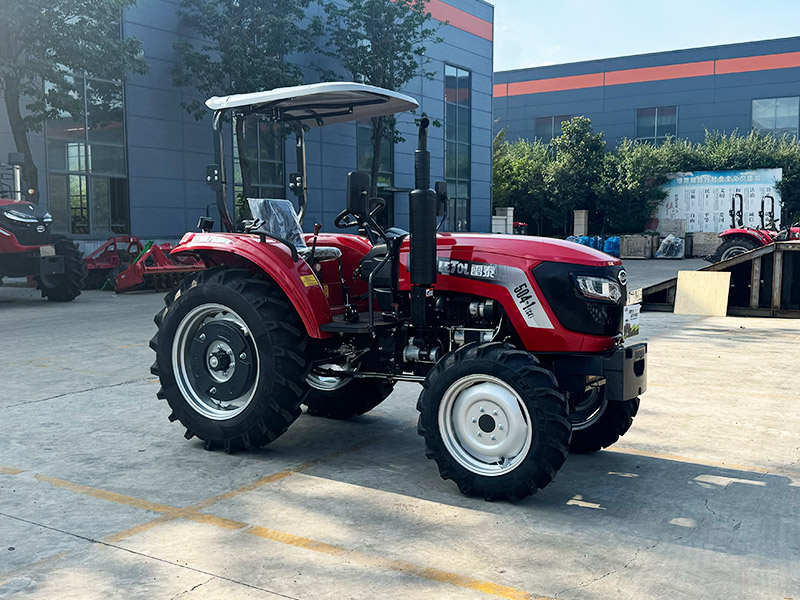

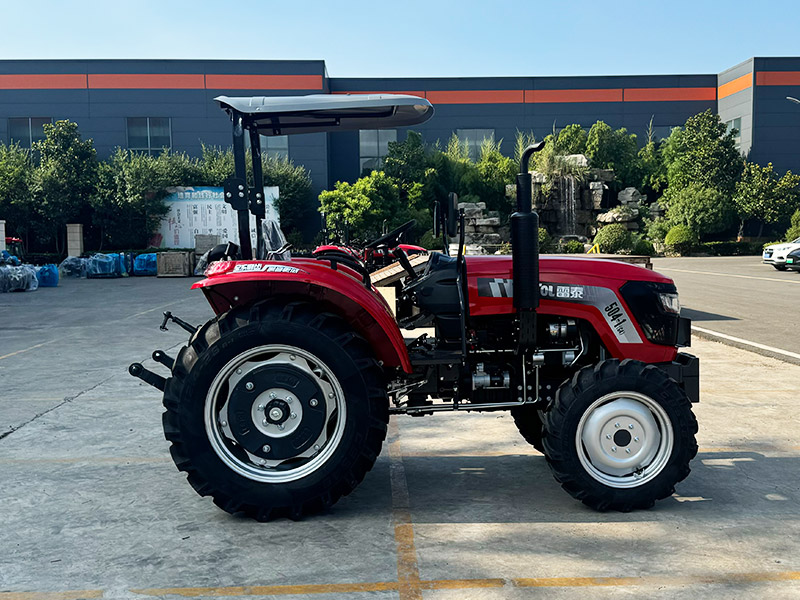

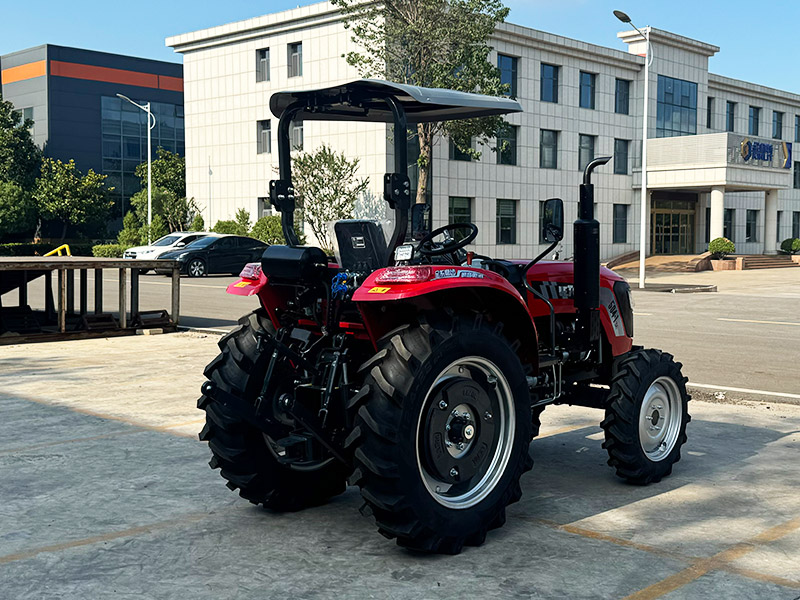

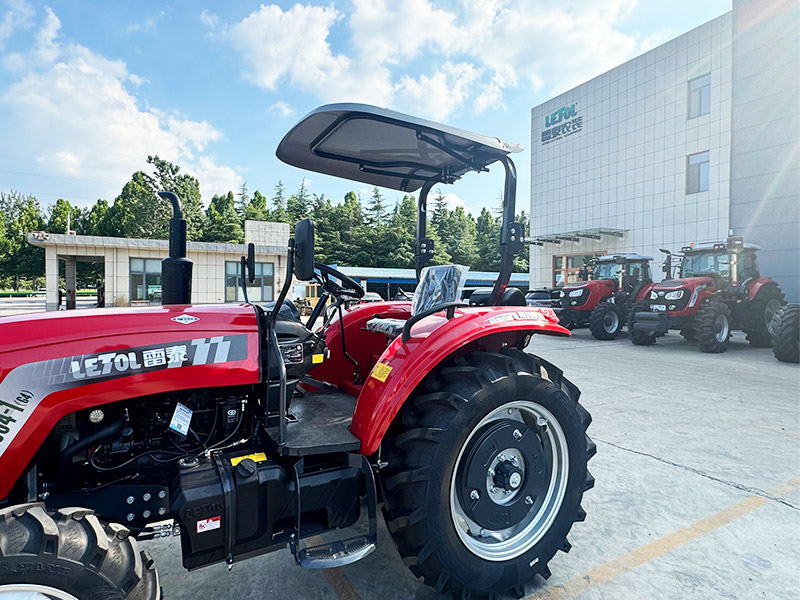

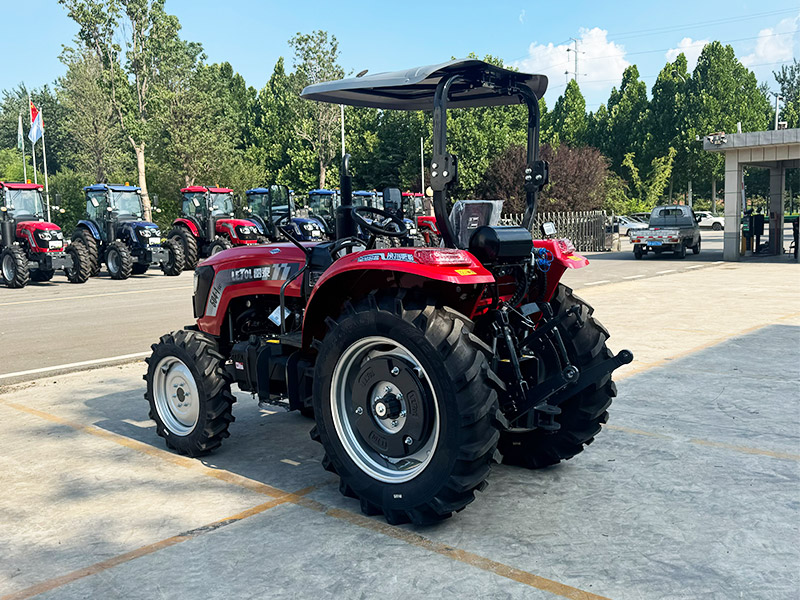

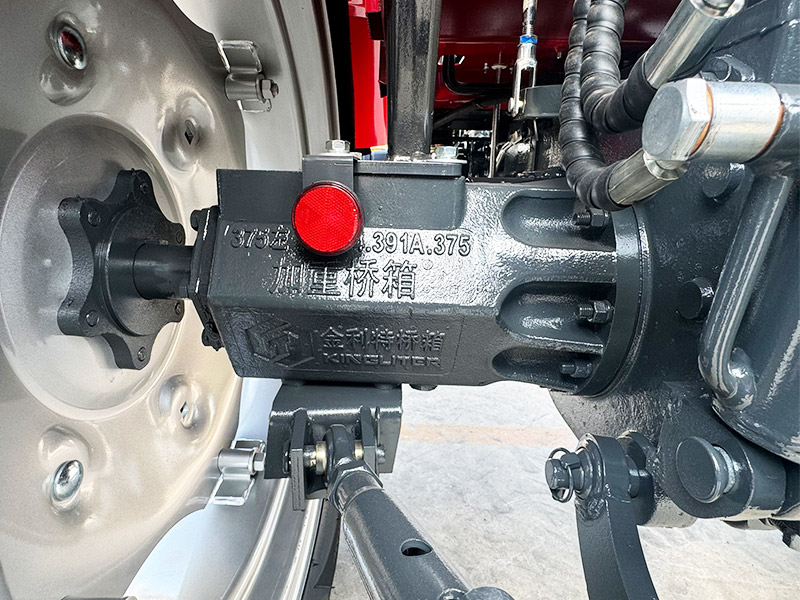

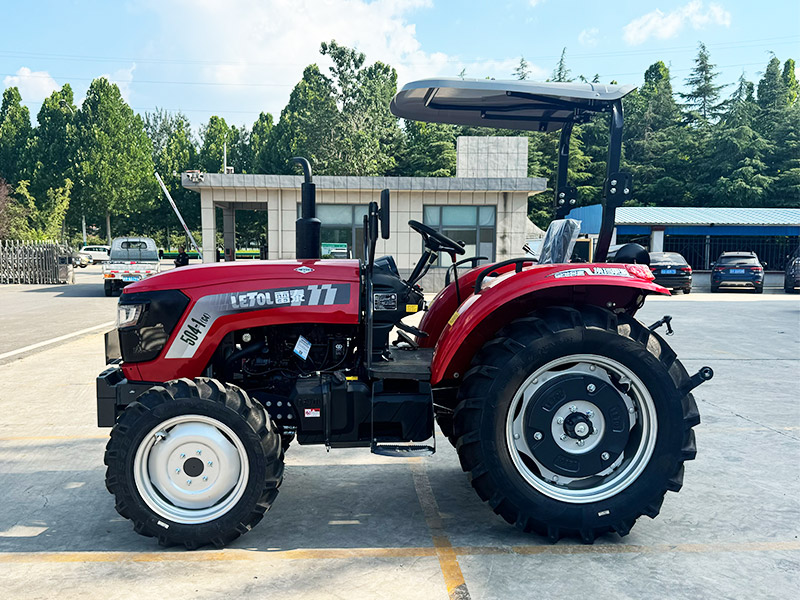

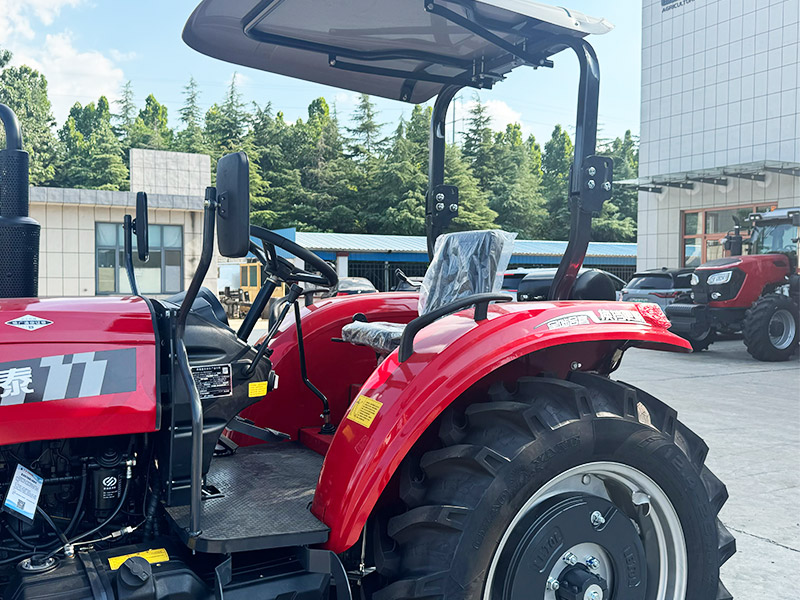

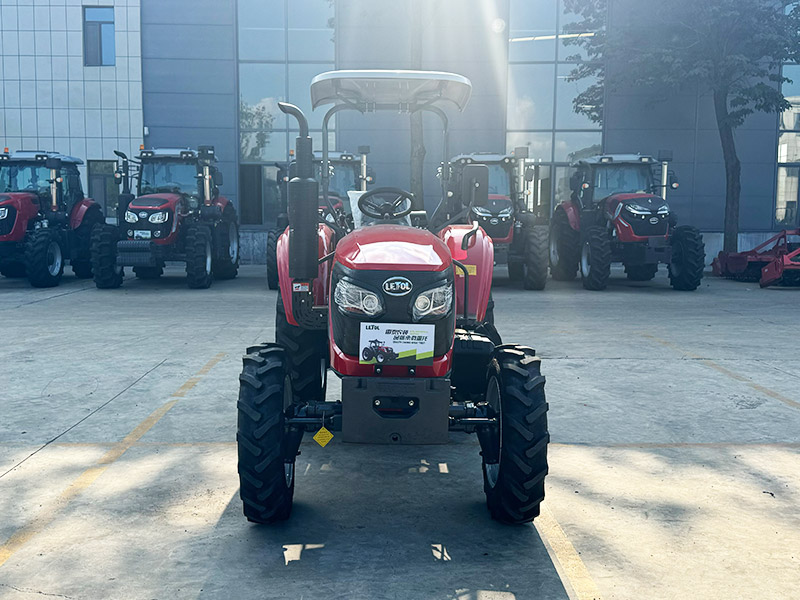

Letol704 (G4)/504-1 (G4) wheeled tractor is a mature product that has been continuously improved and upgraded after years of R&D experience andmarketing testing by Leitai Agricultural Equipment co.td. This product use Dongfanghong Yangdong Munnei engine, adopts a self-developed LT500chassis with a full meshing sleeve of 8F+8R gears. The chasis is thickened and weighted, the box is thickened, and the gears are ground for greatestability. Our self- developed streamlined hood and equipped with European style counterweights, and the entire series use water and drought integratectont axles are matched with new tat oor, making it easyto operate and the apnearance is beautitu and atmospheric, you can also choose a uxuiousair-conditioned cab with a reverse camerato user needs,making the operation more comfortable.

Power(hp)/70/50
Model/Leitai 704 (G4)/504-1 (G4)
Type/Wheeled Type
Driving type/4WD
External dimension (L×W×H)mm3695×1500×2335 (Roll Bar)
Wheel basemm1970
Commonly used wheel tread(Front/Rear) or gaugemm1210/1180
Wheel tread(Front/Rear) or gaugemm1210, 1310/1105-1430
Minimum ground clearance and positionmm315 (Bottom Of Front Axle)
Standard Counterweight (Front/Rear)kgHave
Number of gears (Forward/Backward)/8+8

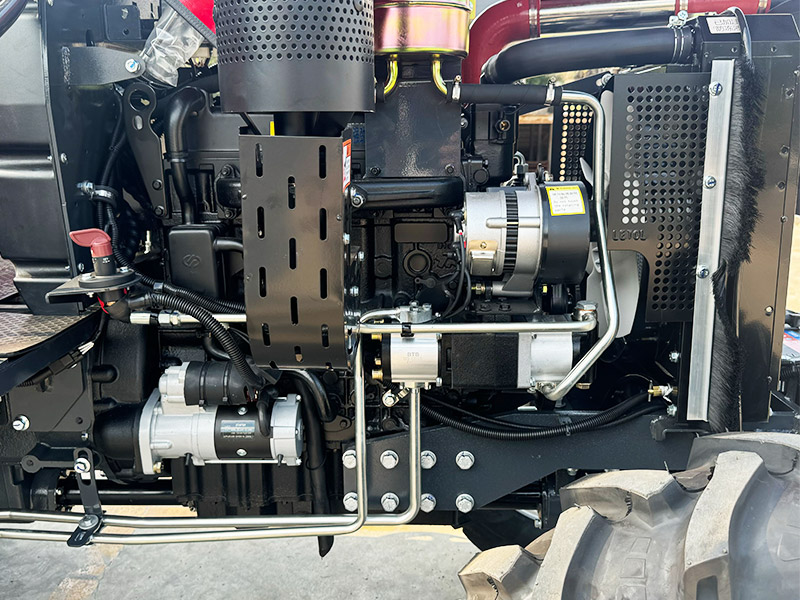

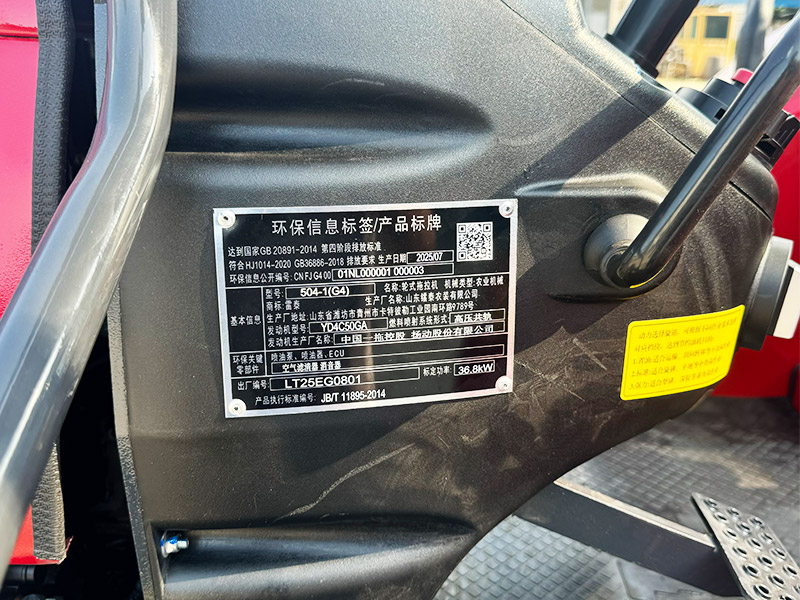

Engine model/YN38NDE4/YN27PAF4/YD4C50GA
Engine nominal powerkw51.5/36.8
Engine calibration speedr/min2400

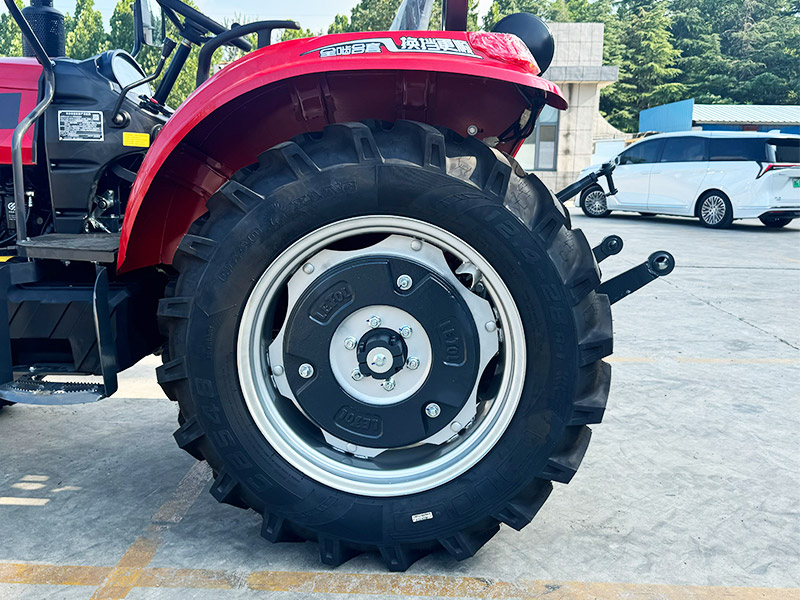

Tyre Model (Front/Rear)/7.5-16/12.4-28

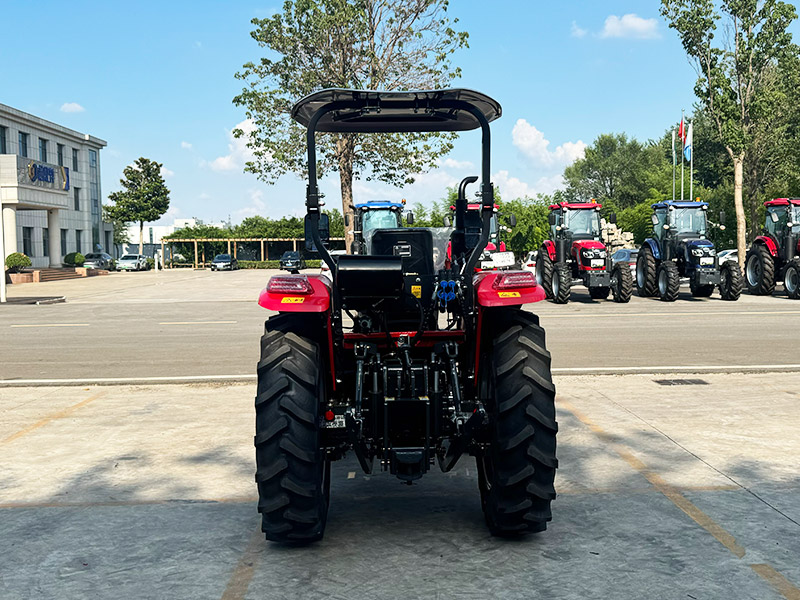

Number of splines of power take off shaft/8 (optional 6)
Standard speed of power take off shaftr/min540/720
